Angle Boards for Packaging: What They Are and When You Need Them

Angle boards are one of the most underused packaging materials in Indian industry. Most businesses discover them after a transit damage incident — the strapping cut through the corrugated box corner and crushed the product inside. By then the damage is done.

This guide explains what angle boards are, when you need them, and how to use them correctly.

---

What Are Angle Boards?

Angle boards (also called edge protectors or corner protectors) are L-shaped strips of corrugated cardboard or solid paperboard used to protect the edges and corners of palletised loads and corrugated boxes during transit and storage.

The L-shaped profile fits over the corner of a corrugated box or the corner of a pallet stack. When PP strapping or stretch film is applied over the load, the angle board distributes the load from the strapping across a wider surface area — preventing the strap from cutting into the corrugated.

Standard dimensions: Thickness ranges from 2mm to 7mm of solid corrugated paperboard. Length ranges from 300mm to 2,000mm. The L-profile width (leg length) is typically 35mm x 35mm, 50mm x 50mm, or 75mm x 75mm.

---

Why Angle Boards Matter — The Physics

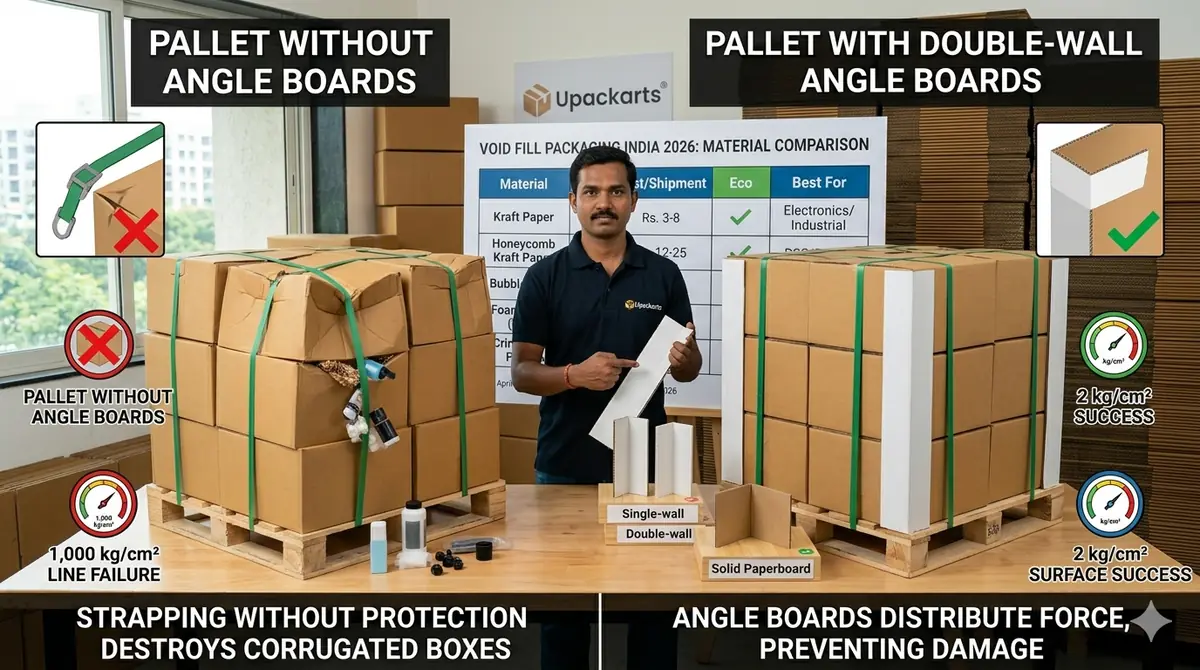

When PP strapping is applied to a pallet of corrugated boxes without angle boards, all the tensioning force concentrates on the sharp corner of the top box. A 15mm strap tensioned to 150 kg of force on a corrugated corner creates a line pressure of 150 kg over a 15mm x 1mm edge — approximately 1,000 kg per square centimetre.

Corrugated cardboard fails at 20 to 40 kg per square centimetre. The strap cuts through every time.

An angle board over the corner distributes that 150 kg force over 50mm x 15mm = 750 square millimetres. Pressure drops to 2 kg per square centimetre — well within the corrugated's capacity.

The angle board turns a line-contact failure into a surface-contact success.

---

When to Use Angle Boards

Always use angle boards when:

PP strapping is applied over corrugated boxes — without angle boards, the strapping will cut into every corrugated corner on the pallet.

Stretch film alone is used on tall pallet stacks — the top corners of the pallet are vulnerable to impact during forklift handling.

Loads are being stored in racking — racking systems grip pallet loads at the corners. Without angle boards, the racking rails damage the corrugated at the contact point.

Products are being exported by sea freight — the vibration and movement of ocean transit cause the strap to saw into unprotected corners over 20 to 30 days.

Consider angle boards when:

Single heavy boxes are being shipped without palletisation — an angle board on each corner of a large shipper box prevents corner crush during stacking.

Products have high corner fragility — glassware, ceramics, electronics — where the top corner of the outer box taking impact would cause product damage.

---

Types of Angle Boards

Single-Wall Corrugated Angle Boards

Made from single-wall corrugated board folded into an L-shape. Lightest and least expensive. Good for light applications where the primary function is preventing strap cut-through on light pallets under 200 kg.

Thickness: 2 to 3mm. Leg: 35 x 35mm standard.

Double-Wall Corrugated Angle Boards

Made from double-wall corrugated — significantly stronger than single-wall. The standard choice for most Indian industrial applications.

Thickness: 4 to 5mm. Leg: 50 x 50mm standard.

Solid Paperboard Angle Boards

Made from solid chipboard or honeycomb board pressed into an L-shape. Much higher compressive and edge-crush resistance than corrugated. For heavy loads above 500 kg and export packaging where the angle board must survive 30 days of sea freight vibration.

Thickness: 5 to 7mm. Leg: 50 x 50mm or 75 x 75mm.

---

How to Use Angle Boards

Step 1: Place the pallet load and ensure all boxes are stacked squarely — no overhang.

Step 2: Place angle boards on all four vertical corners of the pallet stack. The angle board should extend from the pallet deck to the top of the load. For tall loads, use a second angle board on top of the first — they can be nested.

Step 3: Apply PP strapping over the angle boards. The strap should press the angle board against the corner load — this is what distributes the force.

Step 4: Apply stretch film over the entire load including the angle boards. The stretch film locks the angle boards in position and provides additional corner protection.

Upackarts PP Straps and Clips: upackarts.in/products/pp-straps-clips/

Upackarts Stretch Film: upackarts.in/products/stretch-film/

---

Products from Upackarts

Angle Boards: upackarts.in/products/angle-boards/

PP Straps and Clips: upackarts.in/products/pp-straps-clips/

Stretch Film: upackarts.in/products/stretch-film/

5-Ply Heavy Duty Corrugated Boxes: upackarts.in/products/5-ply-heavy-duty-corrugated-boxes/

Wooden Pallets: upackarts.in/products/wooden-pallets/

Delivery across India within 3 to 4 working days. GST invoice. WhatsApp +91-88560-64045.

---

Frequently Asked Questions

What are angle boards used for in packaging?

Angle boards are L-shaped corrugated paperboard strips placed at the corners of palletised loads and corrugated boxes to protect against strap cut-through, corner crush damage during storage in racking, and impact damage during transit and forklift handling.

Are angle boards the same as edge protectors?

Yes. Angle boards, edge protectors, and corner protectors all refer to the same product — an L-shaped protective strip for packaging edges and corners. In India the terms are used interchangeably.

What size angle board do I need for a standard industrial pallet?

For a standard industrial pallet with PP strapping, use 50 x 50mm leg width, 5mm solid corrugated or paperboard angle boards. Length should match the height of your pallet stack — cut to length if needed. For heavy export loads above 500 kg, use 7mm solid paperboard angle boards.
